ISD-IF 1.181-1.259-FT

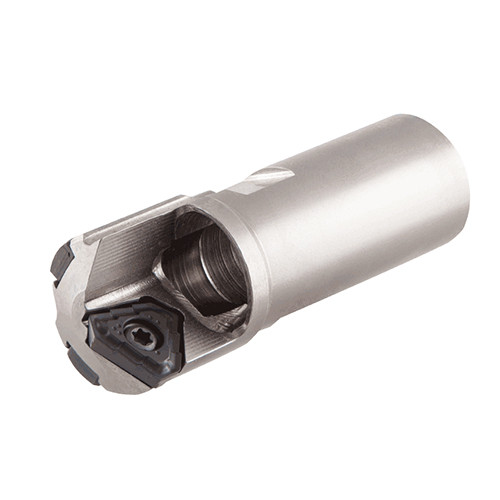

Deep single tube drills with internal Single-Start Thread Connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and for high feed
| Application | | Deep Drilling | | Coolant Supply Property (CSP) | Coolant Thru |

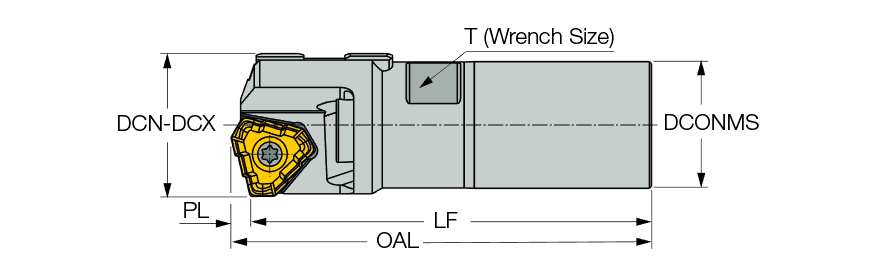

| Connection Diameter Machine Side (DCONMS) | 0.945″ | Cutting Diameter Minimum (DCN) | 1.181″ |
| Shank Size (SS) | 1″ | Cutting Diameter Maximum (DCX) | 1.259″ |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Inch |
| Functional Length (LF) | 2.953″ | Body Material | Steel |
| Overall Length (OAL) | 3.133″ |
Product Features
| Family Description | Deep single tube drills with internal Single-Start Thread Connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and for high feed | Country of Origin | Japan |

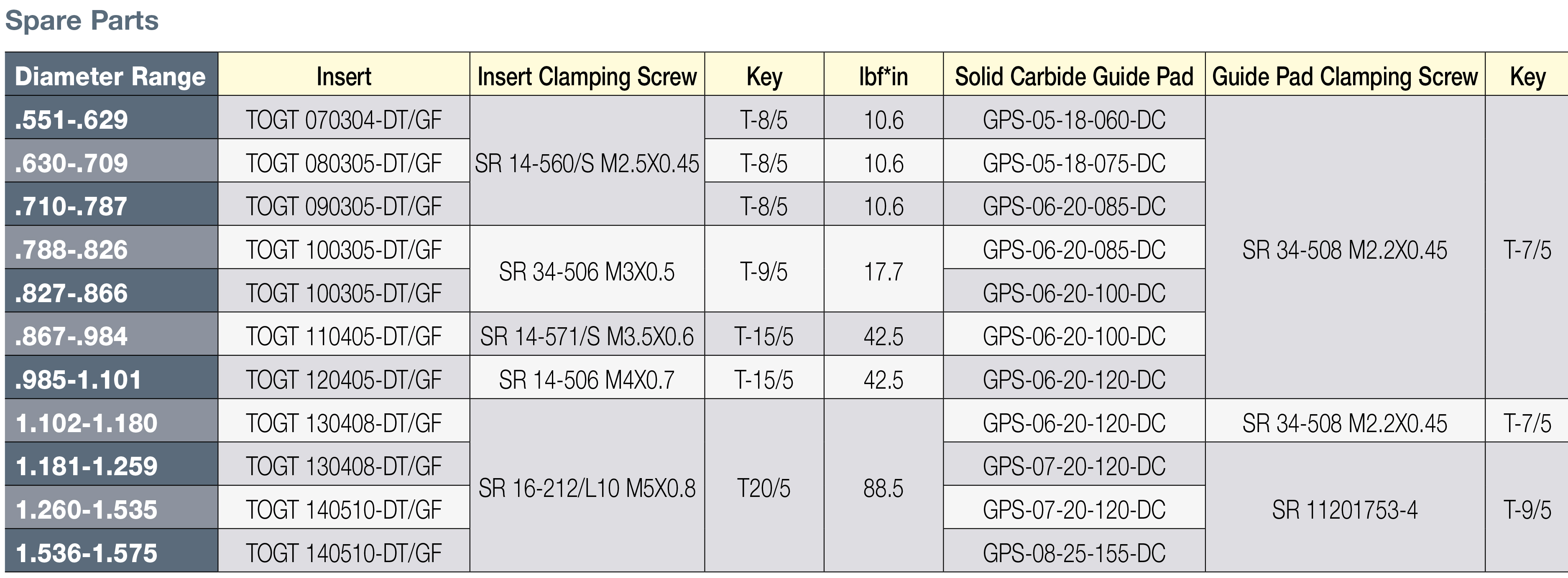

| Remarks | Note: Each item in the attached catalog page represents a diameter range. Inserts and guide pads to be ordered separately Ordering example: ISDIF 1.150FT For suitable pads and inserts see more info. |
