YD1250037C0R01

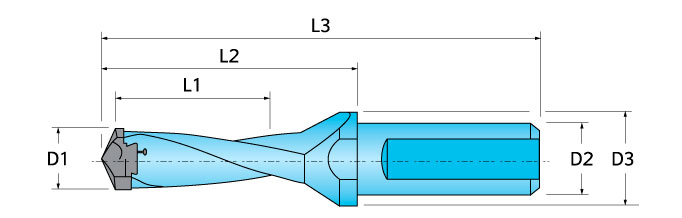

Drill; 0.4921″ to 0.5079″ Dia. × 5/8″ Shank Dia. × 1.47″ LU × 1.89″ Shank Length ; 3D
| Usable Length (LU) | 1.47″ | Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 3D | Cutting Item Count (CICT) | 1 |
| Application | | Drill Mill | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 12.5 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.4921″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.5079″ | Flange Diameter (DF) | 0.79″ |
| Shank Length (LS) | 1.89″ |
Product Features
| Family Description | L:D Ratio - 3:1 Geometry: Positive **OBSOLETE PRODUCT LINE** Refer to the following for stocked alternative: GoldTwist, series TD-3xD Replaceable Tip Drill | ||
| Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.311
