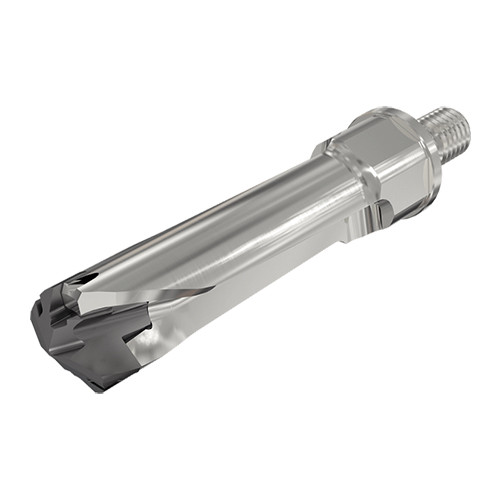

DCNM 190-057-M12-3D

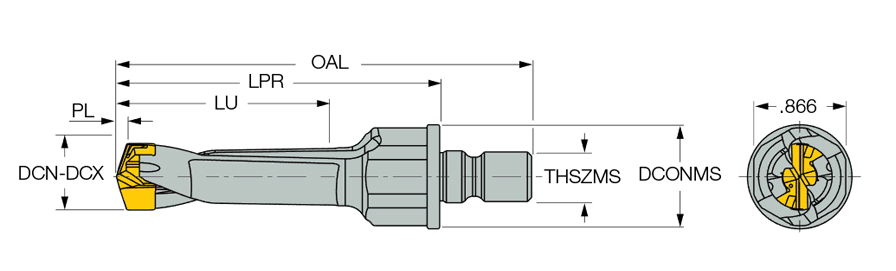

Drill; 0.748″ Dia. × 0.748″ Min. Dia. × 0.787″ Max. Dia. × 0.984″ Shank Dia. × 4.331″ OAL × 2.6772″ LU ; Series STAW
| Cutting Diameter (DC) | 0.748″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.6772″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 190 |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Point Length (PL) | 0.11338″ |
| Insert Seat Size Code (SSC) | 19.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.748″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.787″ | Body Material | Steel |
| Protruding Length (LPR) | 3.46″ | Decimal Equivalent | 0.748″ |
| Overall Length (OAL) | 4.331″ | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | Modular SUMO-CHAM drill dedicated for multi-spindle and Swiss-type machines with FLEX-FIT connection for easy adaptation and set up.The DCNM drill can hold any of the SUMOCHAM drilling heads for different kinds of applications and materials | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.01
