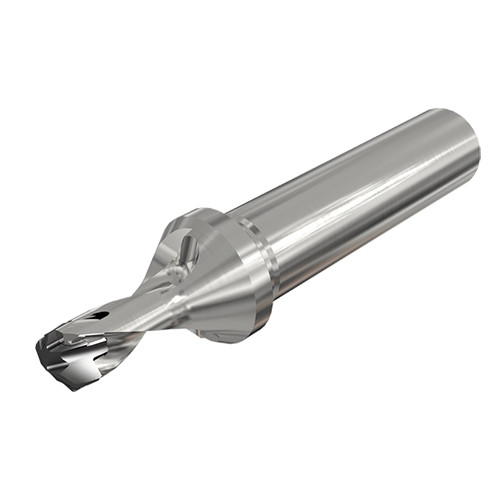

DCN 1181-177-125R-1.5D
SUMOCHAM 1.5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
| Cutting Diameter (DC) | 1.181″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.952″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 300 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.181″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 30.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 1.181″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.219″ | Flange Diameter (DF) | 1.653″ |
| Protruding Length (LPR) | 3.64″ | Decimal Equivalent | 1.181″ |
| Functional Length (LF) | 3.425″ | Body Diameter Reduced (BDRED) | 1.653″ |
| Overall Length (OAL) | 6″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 2.36″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 1.5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
1.931
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
