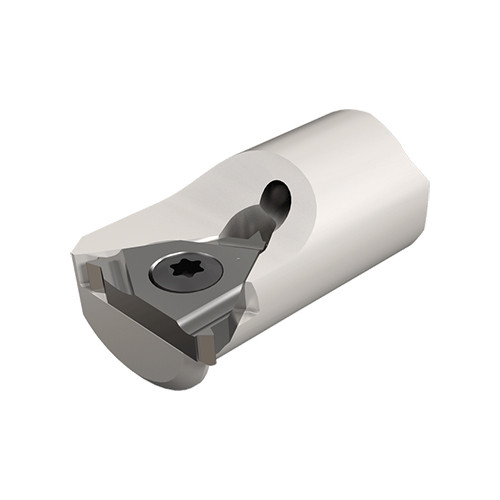

E-SIR 0625-16 HEAD
Interchangeable threading heads, for carbide bars.

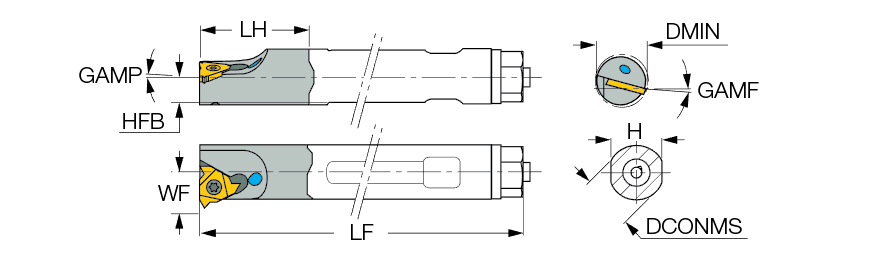

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 0.787″ | Application | | Internal Threading lay down | |
| Head Length (LH) | 1.17″ | Master Insert Identification (MIID) | 16 IRM../16IR |
| Shank Height (H) | 0.59″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Internal Indexable Threading Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Interchangeable threading heads, for carbide bars. | Country of Origin | Israel |
| Remarks | Used on carbide shanks |
Shipping Info
Package Weight
0.022
