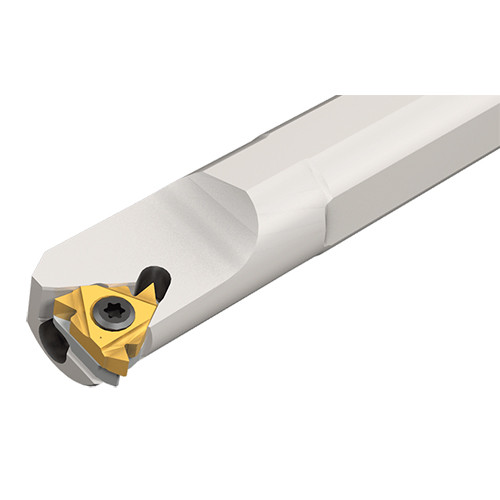

SIR 0205 H06CB

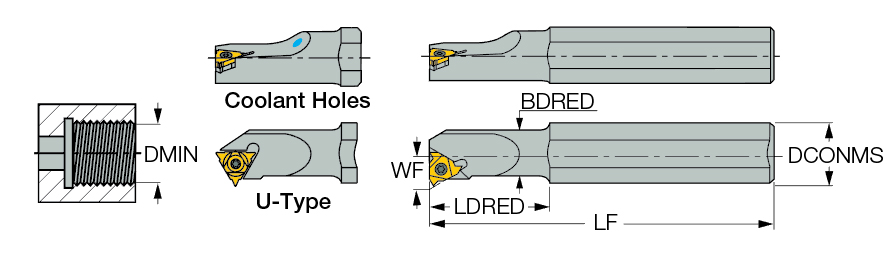

| Connection Diameter Machine Side (DCONMS) | 1/4″ | Application | | Int. Grooving | Internal Threading lay down | |
| Minimum Bore Diameter (DMIN) | 0.24″ | Master Insert Identification (MIID) | 06 IR.. |
| Head Length (LH) | 1″ | Body Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Internal Indexable Threading Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Cutting Position | Internal |
Product Features
| Family Description | Internal threading bars | Country of Origin | Israel |
| Remarks | B-steel shank with coolant hole, C-carbide shank without coolant hole, CB-carbide shank with coolant hole All toolholders are made for 1.5 helix angle For GTGA inserts, use anvil AI 16-0 |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.121
