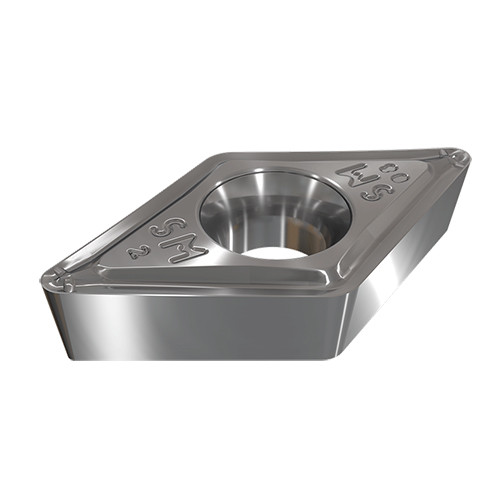

DCMT 2-0-SM IC907
55° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.02″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | DCMT | Min. Turning Feed (ft(min)) | 0.0016 ″/rev |
| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 070 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.303″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | SM |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |

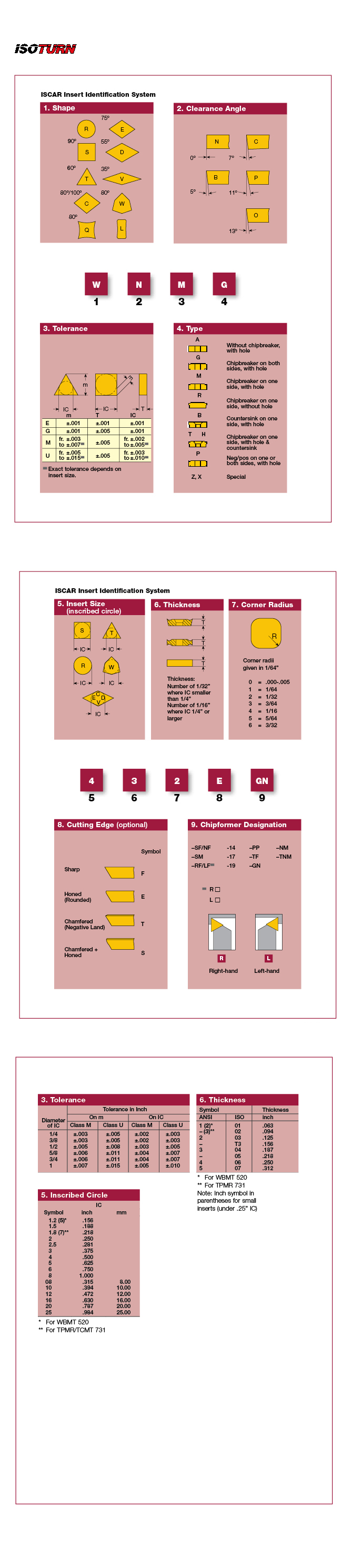

| Coating | TiAlN | Series/List # | ISOI |
| Grade | IC907 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 55° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.007
