PENTA 34N150C015 IC908
Parting Off Insert; 0.059″ CW × 0.0059″ Corner Radius ; Neutral ; Carbide ; TiAlN ; IC908

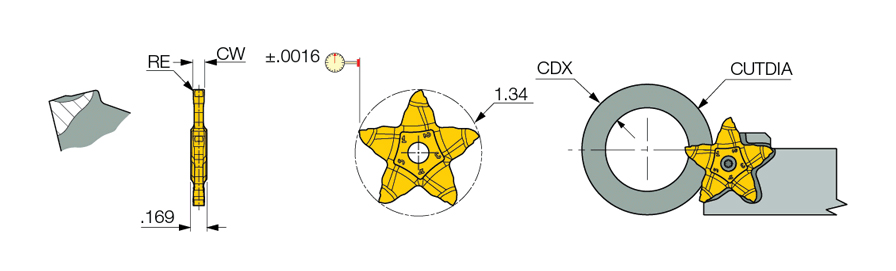

| Cutting Width (CW) | 0.059″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0059″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Depth Maximum (CDX) | 0.335″ | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Angle | 12 Degrees |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Parting | | Insert Width (W1) | 0.169″ |
Product Features
| Family Description | Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info |
