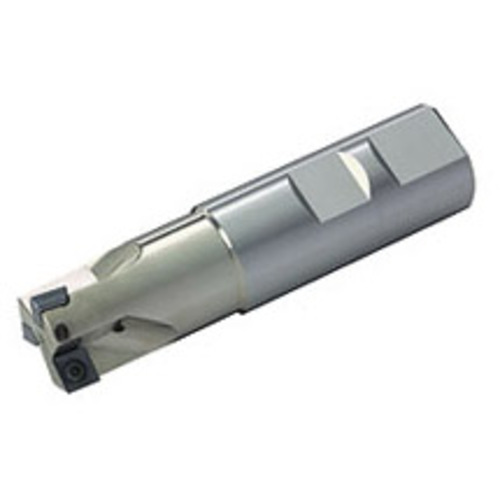

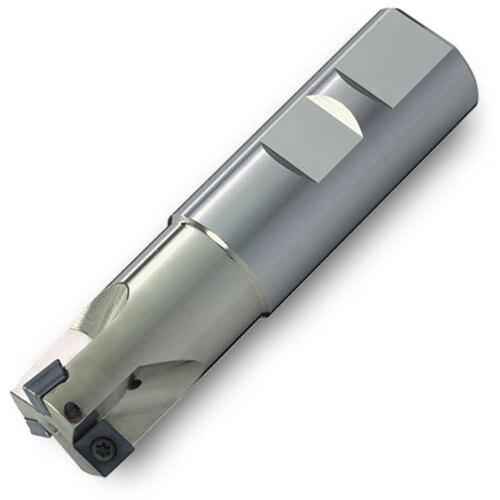

15J1E-1001780R01
.31″ Max. depth of cut 8 mm Insert with 4 indexes Insert corners: .020″, .031″, .062″ R
| Cutting Diameter (DC/DCX) | 1″ | Usable Length (LU) | 1.7″ |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.31″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 1-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | .31″ Max. depth of cut 8 mm Insert with 4 indexes Insert corners: .020″, .031″, .062″ R | ||
| Country of Origin | Germany |
Shipping Info
LocalField10
0
Package Weight
0.701
