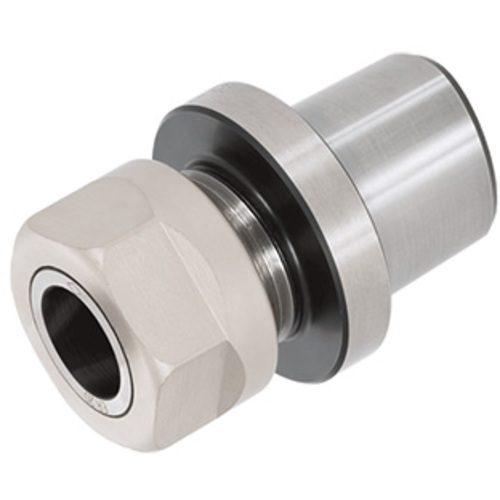

C6ER16X100
TungCap ER collet chucks holders (DIN 6499)

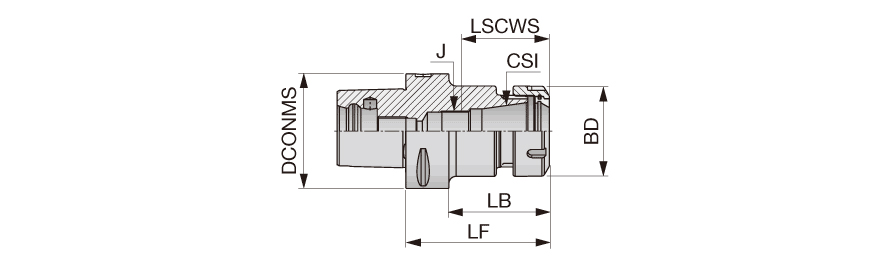

| Shank Size (SS) | C6 | Application | | Face contact interface | |
| Connection Size (CSI) | ER16 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 1.102″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Length (LB) | 3.071″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Shank Length (LS) | 1.496″ | Body Material | Steel |
| Functional Length (LF) | 3.937″ |
Product Features
| Family Description | TungCap ER collet chucks holders (DIN 6499) | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included |
Shipping Info
Package Weight
2.403
