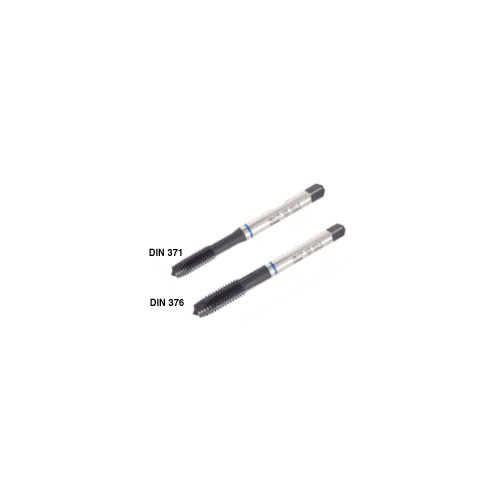

TPGN M-8X1.25-S PMTC

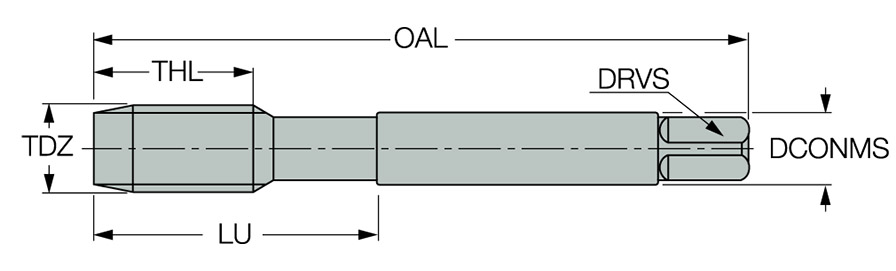

| Thread Size | M8 × 1.25 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M8 | Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Thread Pitch (TP) | 1.25 mm | Thread Cutting Part Length (THL) | 0.709″ |
| Usable Length (LU) | 1.38″ | Drive Size (DRVS) | 0.244″ |
| Overall Length (OAL) | 3.543″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | PMTC |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
Product Features
| Country of Origin | Hungary |
Shipping Info
LocalField10
0
Package Weight
32
