TPGN UNF 7/8-14-M HETI
HSSE 5% Co Spiral Flute Machine Taps - Unified Fine Threads, for a Wide Range of Materials

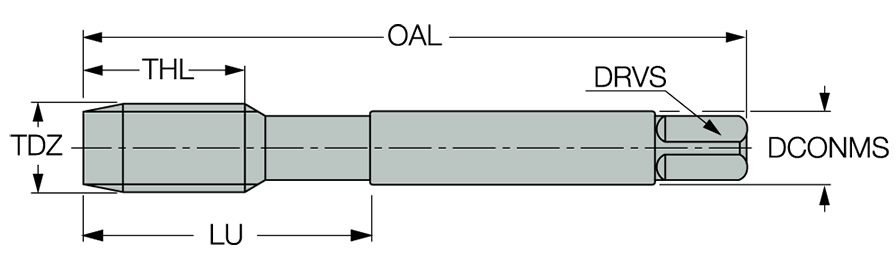

| Thread Diameter Size (TDZ) | UNF 7/8 | Standard | DIN 376 |
| Threads per Inch (TPI) | 14 /" | Tool Type | Machine Through Hole Taps |
| Overall Length (OAL) | 4.921″ | Coating | TiN |
| Thread Cutting Part Length (THL) | 0.945″ | Drive Size (DRVS) | 0.571″ |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Grade | HETI |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Thread Size | UNF 7/8 - 14 |
| Cutting Edge Material | HSS | Body Material | HSS |
Product Features
| Family Description | HSSE 5% Co Spiral Flute Machine Taps - Unified Fine Threads, for a Wide Range of Materials | ||
| Country of Origin | Hungary |
Shipping Info
Package Weight
0.551
