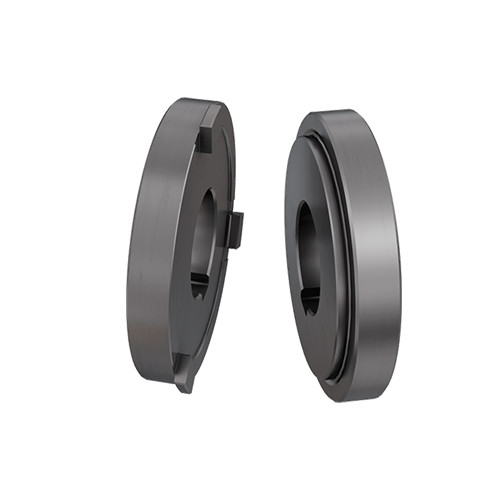

CUTTER RING 32-48
Driving rings for SDN-FLX-LN08 slitting cutters.

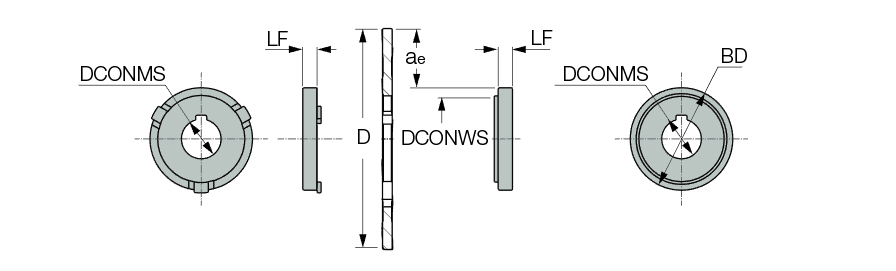

| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Body Material | Steel |
| Body Diameter (BD) | 48 mm | Series/List # | 6440 |
| Application | | Driving Ring | | Arbore-Hole Diameter | 32mm |
| Tool Type | Slitting cutters |
Product Features
| Family Description | Driving rings for SDN-FLX-LN08 slitting cutters. | Country of Origin | Israel |
| Remarks | D and ae should be calculated according to the slitting cutter being used. |
Shipping Info
Package Weight
0.694
