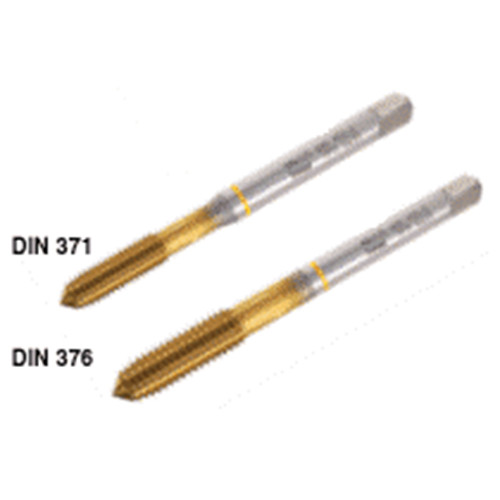

TPF M-16X2.0-F HETI
HSS cold forming machine taps - ISO metric coarse threads, according to DIN 13.
| Tool Type | Machine Blind Hole Taps | Chamfer | Plug |

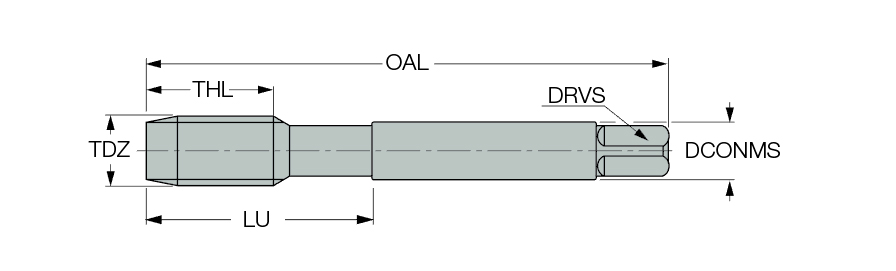

| Thread Diameter Size (TDZ) | M16 | Square Size | 0.131″ × 1/4″ |
| Thread Pitch (TP) | 2 mm | Measurement Type | Inch |
| Overall Length (OAL) | 4.331″ | Style | DIN 371 |
| Thread Cutting Part Length (THL) | 1.063″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 6 | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | H10 | Pack Size | 12 |
| Tap Standard | DIN 376 | Series/List # | 16B |
| Thread Standard | THFT | | Grade | HETI |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Thread Size | M16 × 2 |
| Coating | TiN | Body Material | HSS |
| Threads per Inch (TPI) | 32 | Thread Form Type (THFT) | M60 |
| Flute Length | 3/8″ |
Product Features
| Family Description | HSS cold forming machine taps - ISO metric coarse threads, according to DIN 13. | ||
| Country of Origin | Korea |
Shipping Info
Package Weight
0.240
