ECAI-B3 .5-2.5CR03-5EC IC1508

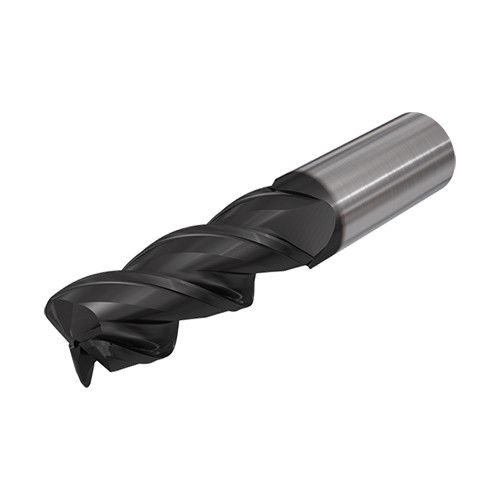

DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials.

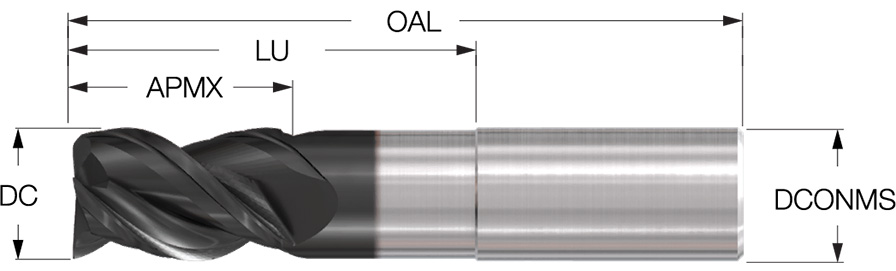

| Cutting Diameter (DC) | 1/2″ | Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 5″ | Grade | IC1508 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | DLC | Maximum Feed per Tooth (fz(max)) | 0.006 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 2-1/2″ | Decimal Equivalent | 0.5″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
Product Features
| Family Description | DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials. | ||
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
0.999
