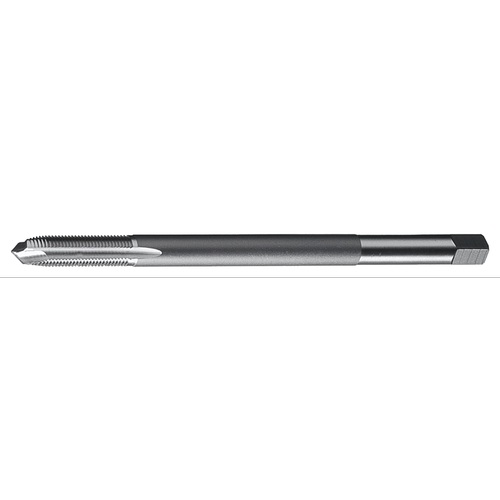

#10-24 UNC 2 Flute H3 HSS 6″ Extension Plug Chamfer 6″ Extended Length Spiral Point Tap- Bright
| Thread Diameter Size (TDZ) | #10 | Chamfer | Plug |
| Threads per Inch (TPI) | 24 | Coating | Uncoated |
| Thread Standard | NC | End Shape | Square |
| Overall Length (OAL) | 6″ | Style | Plug |
| Thread Cutting Part Length (THL) | 7/8″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Flute Type | Straight |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 1011E |
| Cutting Edge Material | HSS | Thread Size | #10 - 24 |
| Thread Tolerance Class (TCTR) | H3 | 2B | Shank Type | Round w/ Drive Square |
| Tool Type | Machine Tap |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.049
