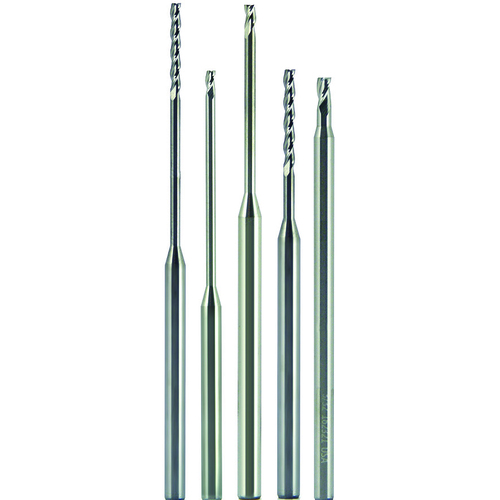

0.0400″ × 1/8″ × 0.0600″ × 2 1/2″ 3 Flute Single End Carbide Finishing Center Cutting End Mill-DLC Series/List #5916E
| Cutting Diameter (DC) | 0.04″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.203″ |
| Depth of Cut Maximum (APMX) | 0.06″ | Application | Finishing |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Miniature End Mill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | DLC | Style | Finishing |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.04″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5916E |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.02
