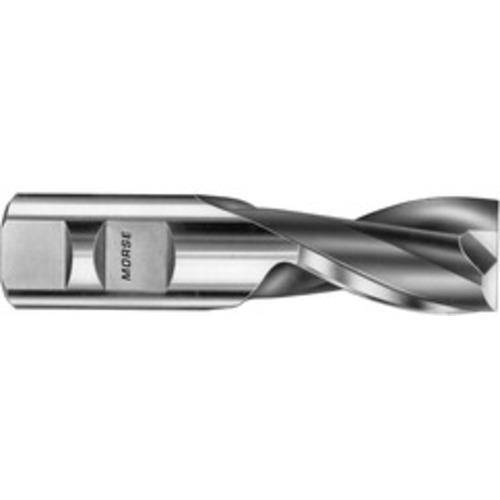

1 1/4″ × 1″ × 1 5/8″ × 4 1/8″ 2 Flute Single End HSS Finishing Center Cutting End Mill-Uncoated Series/List #1898
| Cutting Diameter (DC) | 1-1/4″ | Usable Length (LU) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Single End |
| Overall Length (OAL) | 4-1/8″ | Length Group | Regular |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 1.25″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 1898 |
Product Features
| Remarks | •2 Flute Single End Mills •High Speed Steel • Center Cutting •Used for slotting operations in all types of materials | Country of Origin | USA |
Shipping Info
Package Length
5.00000
Package Width
1.60000
Package Height
1.60000
Package Weight
0.96
