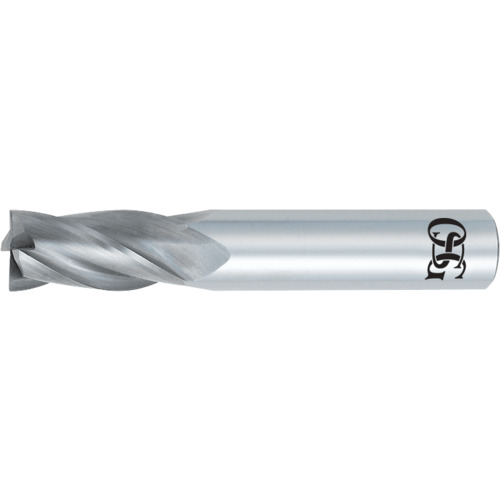

1″ Dia. × 1″ Shank × 1-1/2″ DOC × 4″ OAL, Carbide, Bright, 4 Flute, Square, Solid End Mill
| Cutting Diameter (DC) | 1″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Usable Length (LU) | 1-1/2″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Style | Square |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 404 |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Regular Length 4-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
4.35000
Package Width
1.20000
Package Height
1.15000
Package Weight
1.41
